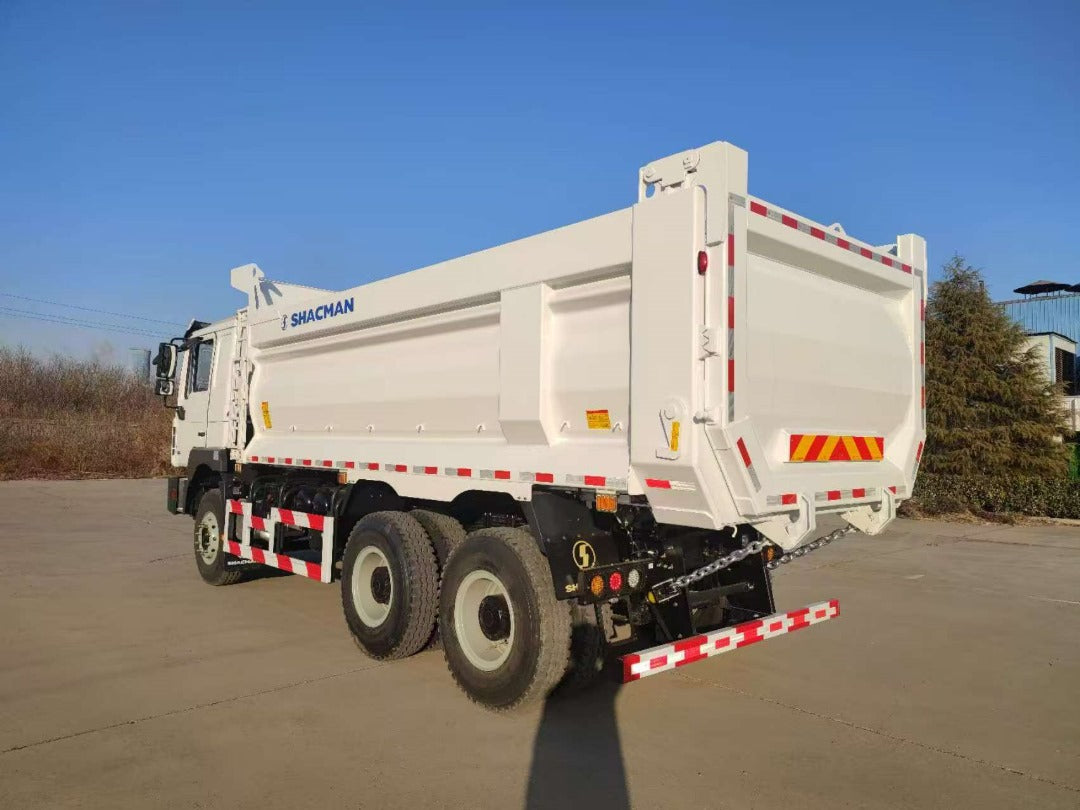

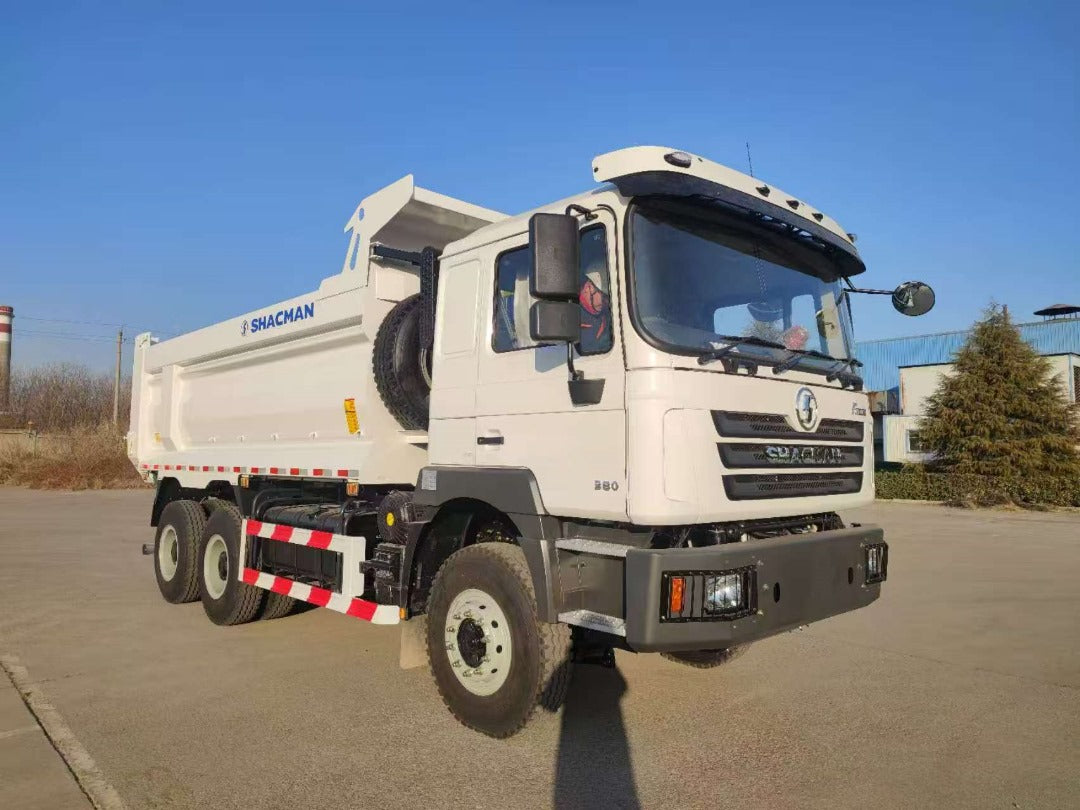

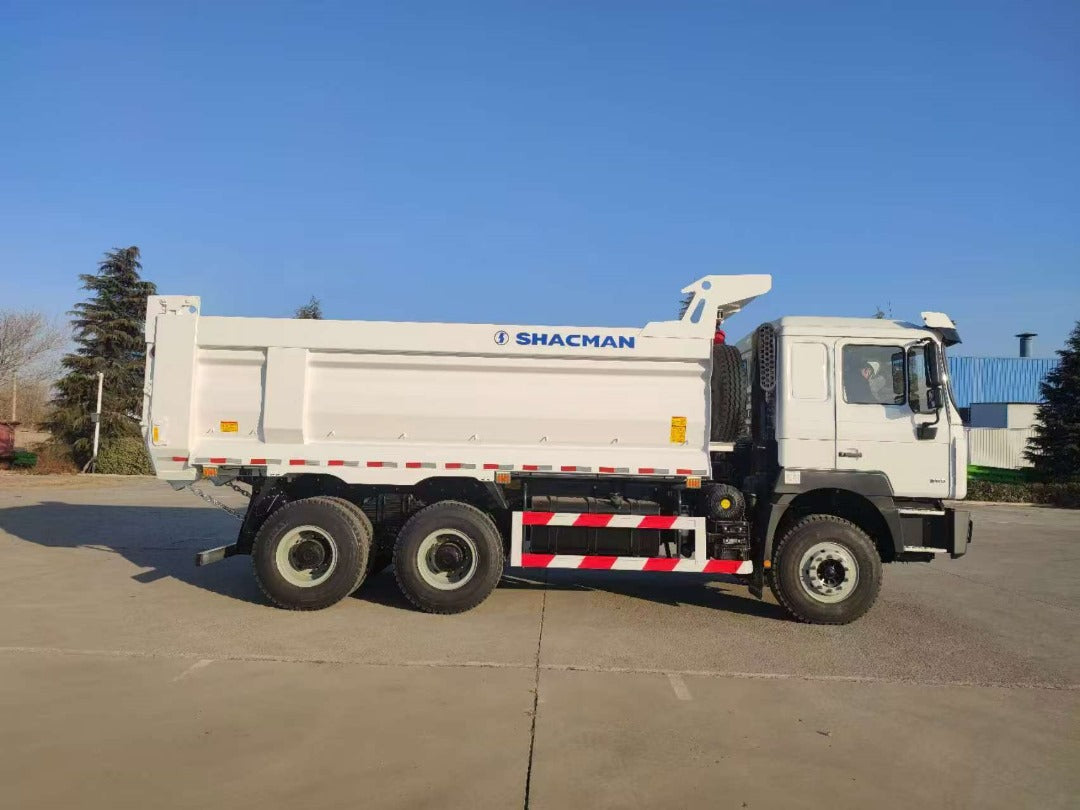

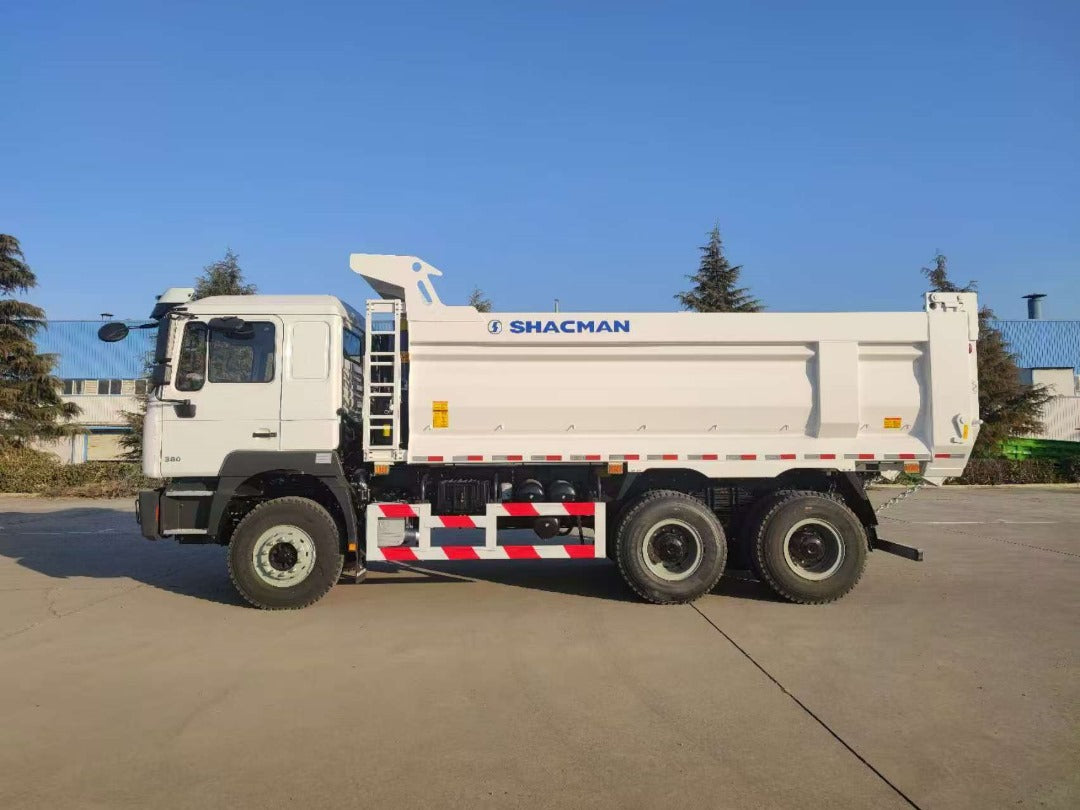

Shacman F3000 6x4 (M/T) Dump Truck – 400HP (Euro II)

Tough, reliable, and cost-effective, the Shacman F3000 6x4 Dump Truck is built for heavy-duty hauling. Powered by a 400HP Weichai engine, this workhorse delivers optimal torque for quarry, mining, and bulk earthmoving operations. With a U-type T700 steel box and reinforced suspension, it’s a rugged performer for PNG’s harshest worksites.

Key Specifications:

• Engine: Weichai WP12.400E201, 11.6L, 400HP, Euro II
• Transmission: FAST 10JSD180-QH50 manual, 10 forward / 2 reverse
• GVW: 50,000 kg | Kerb Mass: 16,000 kg
• Axles: HANDE 9.5T front / 2 x 16T rear (double reduction)

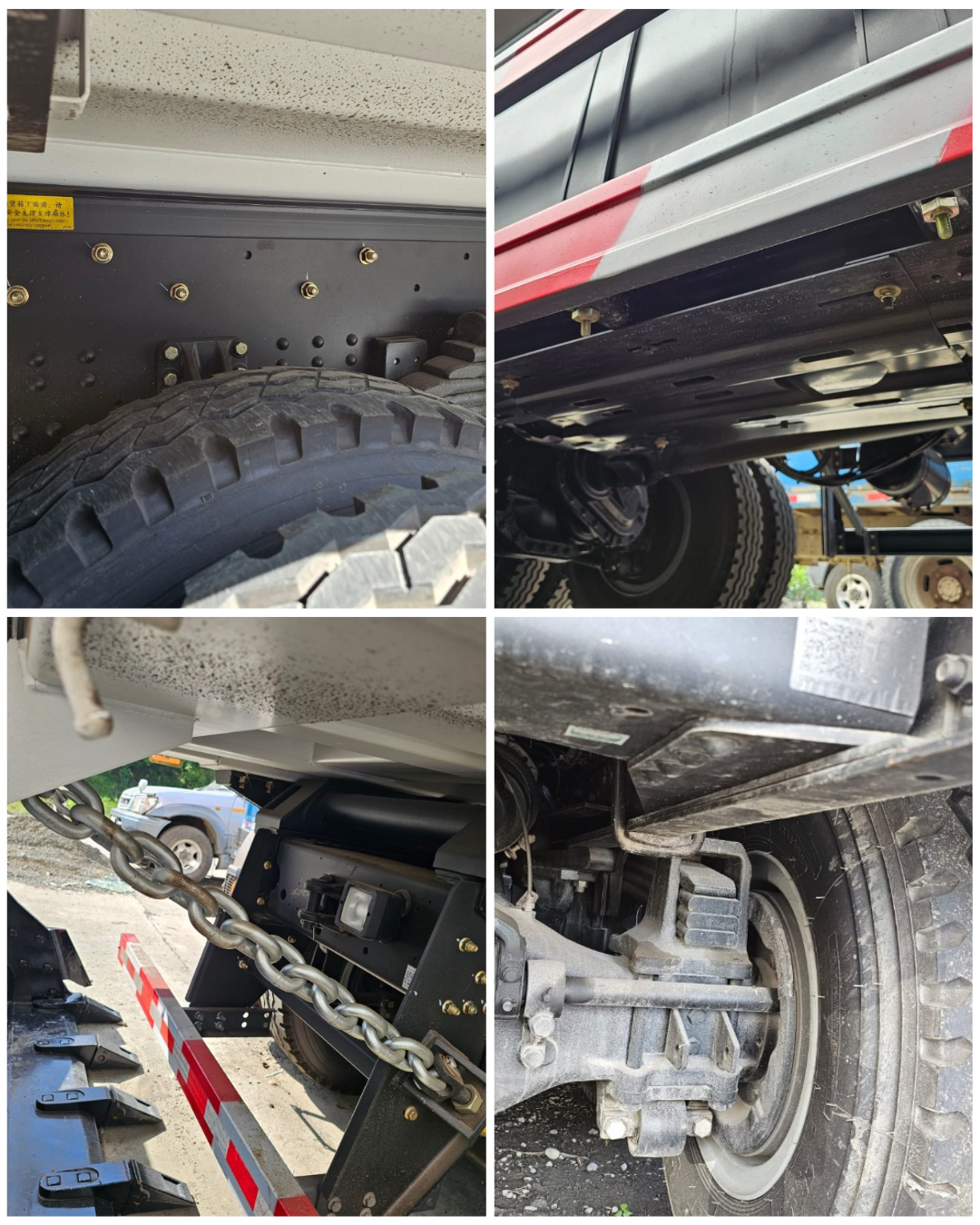

• Suspension: Multi-leaf front & rear with 4 U-bolts
• Tyres: 12.00R20 (10+1)
• Fuel Tank: 400L Aluminium

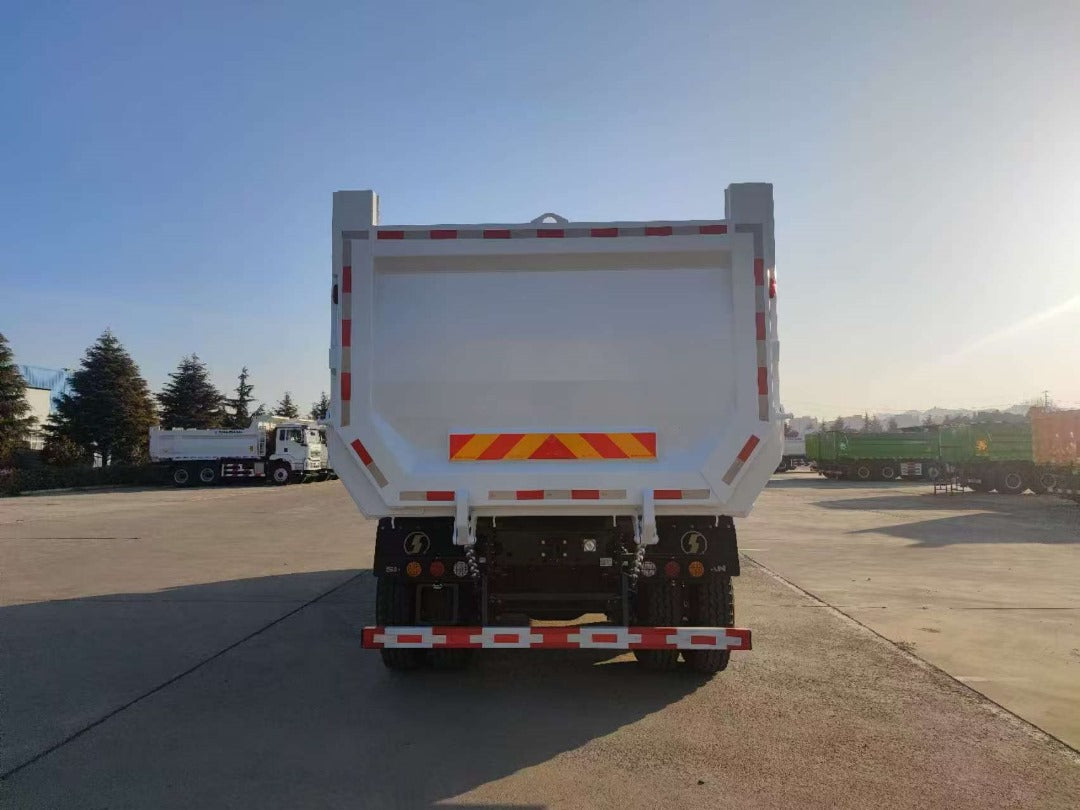

• Dumper Box: 5600 x 2300 x 1500 mm, U-type, bottom 10mm, side 8mm, T700 high-strength steel

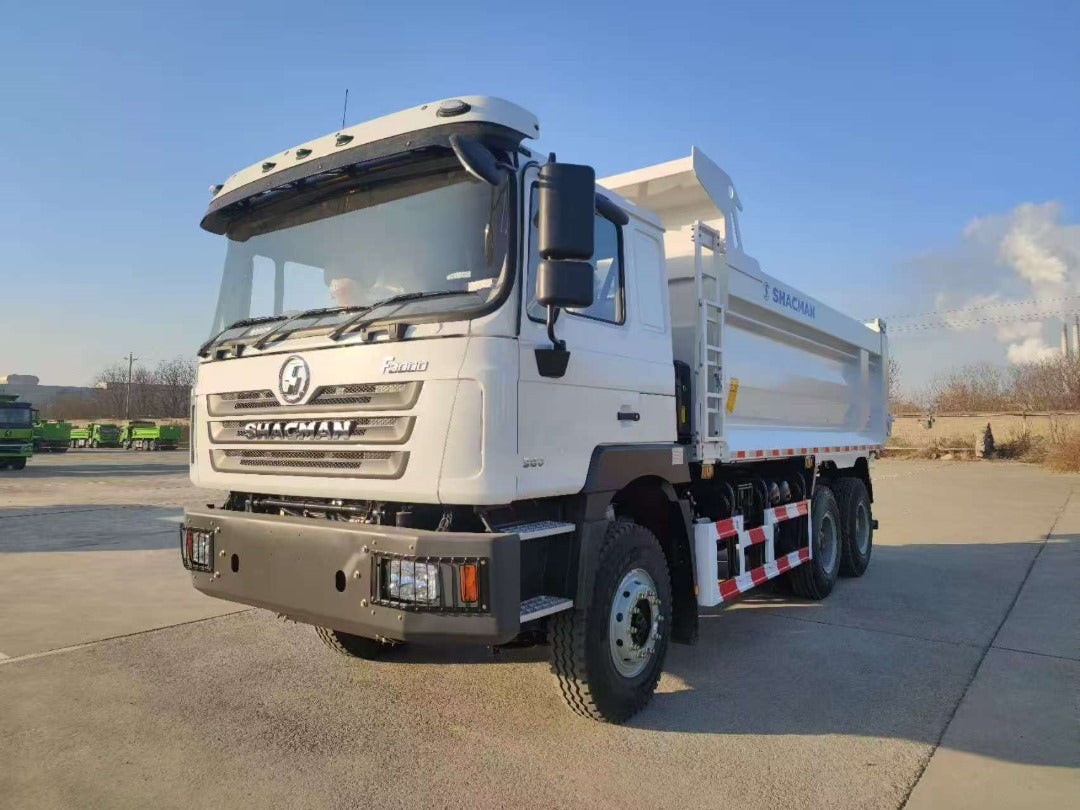

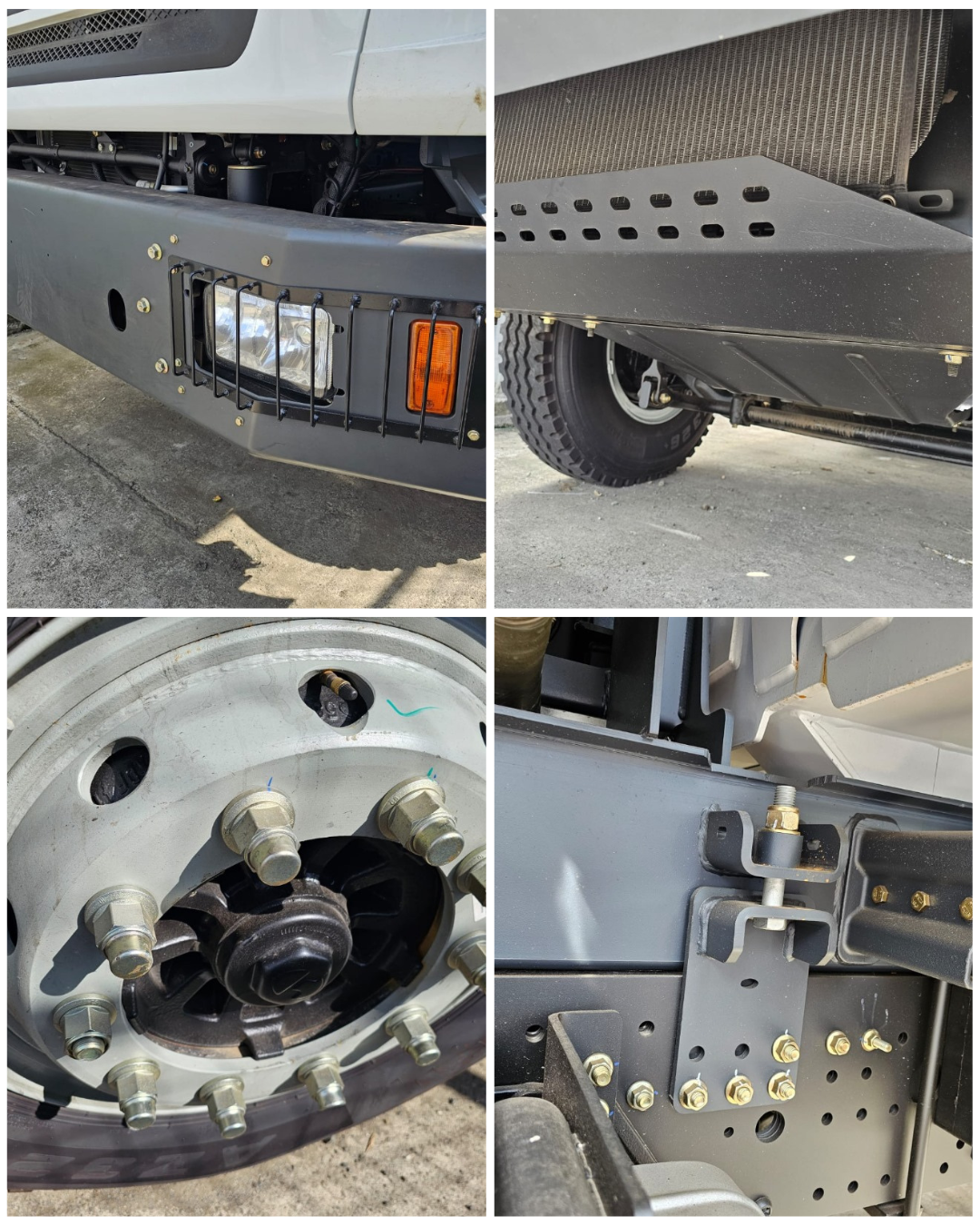

• Cab: SHACMAN F3000 – manual flip, hydraulic main seat, 4-point suspension, radiator & tail light protector, engine guard, super-duty package with anti-theft fuel & battery box

Perfect For:
Construction, aggregates, mine material transport, roadworks

Exclusive to HBS Machinery
HBS is the official and only Shacman dealer in Papua New Guinea, with aftersales support and spare parts located at 11 Mile, Lae.
