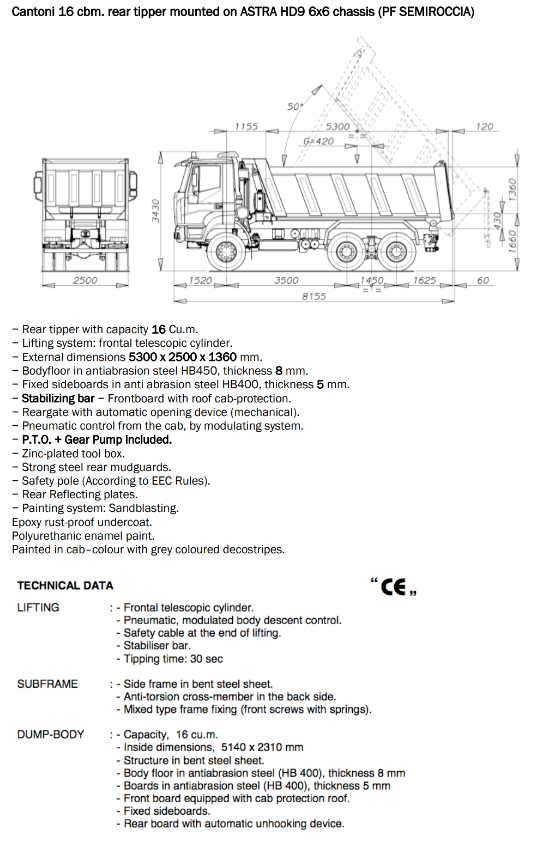

Cantoni & C. PF Semiroccia 16m³ Tipper Body – High-End Dump Body for 6x4 / 6x6 Trucks

The Cantoni PF Semiroccia 16m³ rear tipper body is a premium heavy-duty solution for mining, quarrying, and off-road construction. Built with high-tensile anti-abrasion steel and engineered for harsh terrain, this body is ideal for trucks with a wheelbase of ~3,500 mm—including ASTRA HD9 6x6, Shacman H3000, Iveco Trakker, and other 6x4/6x6 platforms.

With a frontal telescopic lifting system, reinforced subframe, HB450/400 steel structure, and integrated P.T.O. + gear pump, this is the ultimate ready-to-fit dump body for serious operations.

Price exclude fitment, subframe, and commissioning by HBS Machinery.

General Specs

• Capacity: 16m³
• External dimensions: 5300 x 2500 x 1360 mm
• Body volume inner: 5140 x 2310 mm

Construction

• Side frame in bent steel sheet
• Floor: HB450 anti-abrasion steel, 8 mm
• Sideboards: HB400 anti-abrasion steel, 5 mm
• Front board with cab-protection roof
• Rear gate: Mechanical auto-unhooking
• Strong steel mudguards + zinc-plated tool box
• Stabilising frontboard bar

Lifting System

• Frontal telescopic cylinder
• Pneumatic control from cab
• Modulated descent
• Tipping time: 30 seconds

Subframe

• Anti-torsion cross-members
• Mixed type frame fixing (springs + bolted front)
• Fitment included
• P.T.O. + Gear Pump Included

Finish & Paint

• Sandblasted
• Epoxy rustproof undercoat
• Polyurethane enamel topcoat
• Painted to match cab with grey stripes

Compliance & Safety

• Conforms to CE/EEC standards
• Safety pole
• Reflective plates
